Understanding Power Swing in Power Systems
In electrical power systems, not every disturbance requires immediate action by protective devices such as distance relays or circuit breakers. Some disturbances are temporary in nature and resolve on their own without causing lasting damage. These are known as power swings.
What is a Power Swing?
A power swing occurs when there is a temporary fluctuation in the power flow within the system, often caused by events such as sudden load changes, switching operations, or minor faults. Under this condition, the system experiences oscillations but remains stable overall.
Because these swings are transient, unnecessary tripping of circuit breakers can actually harm system stability rather than protect it. That’s why it’s important to correctly identify a power swing before taking action.
How Do We Detect a Power Swing?
To distinguish a power swing from an actual fault, certain conditions must be verified:
- No Earth Fault Present
There should be no detection of zero-sequence current, indicating the absence of a ground fault. - No Phase-to-Phase Fault
The system should not show negative-sequence current, which would otherwise indicate a phase fault. - Gradual Change in Impedance

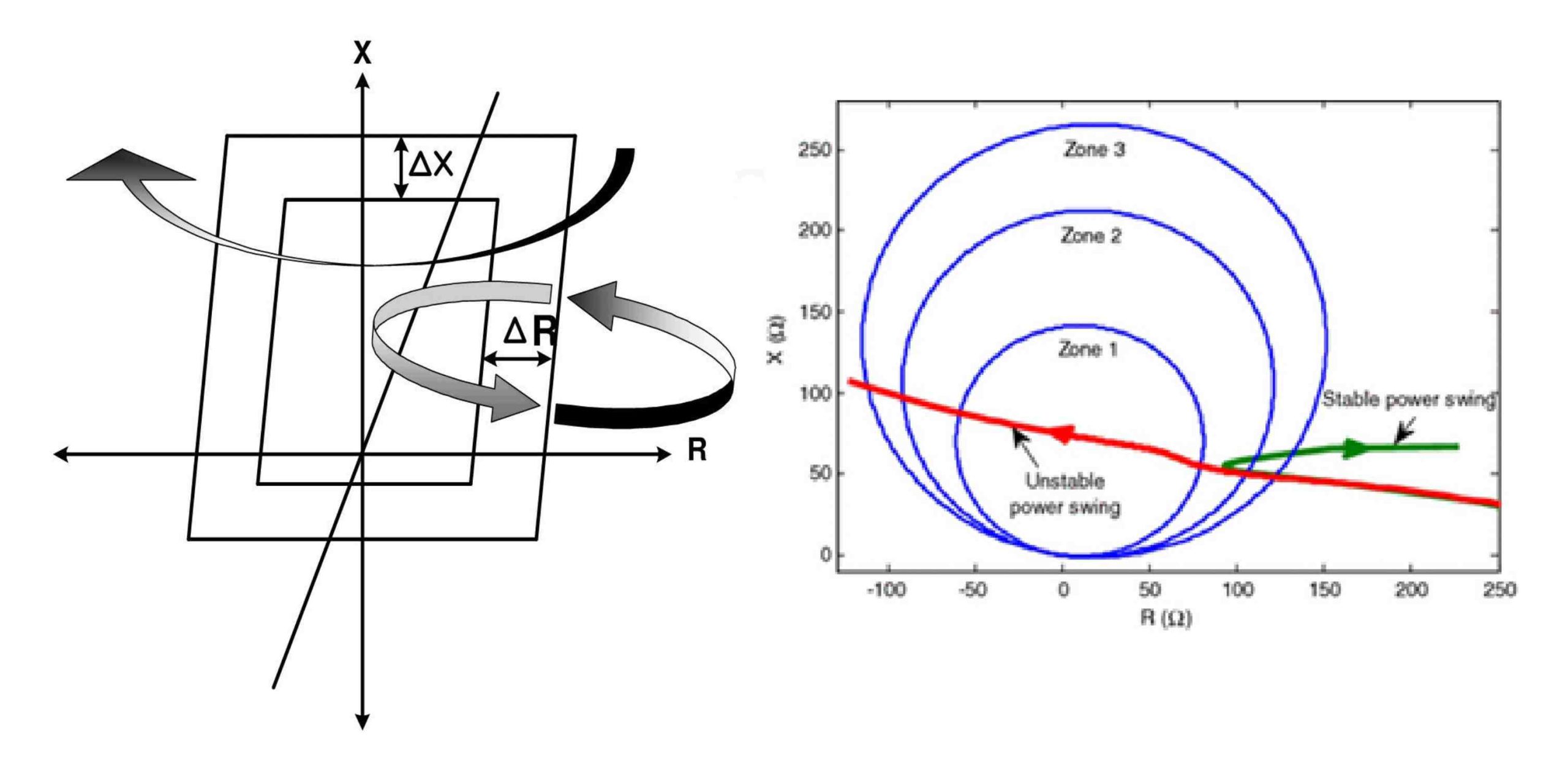

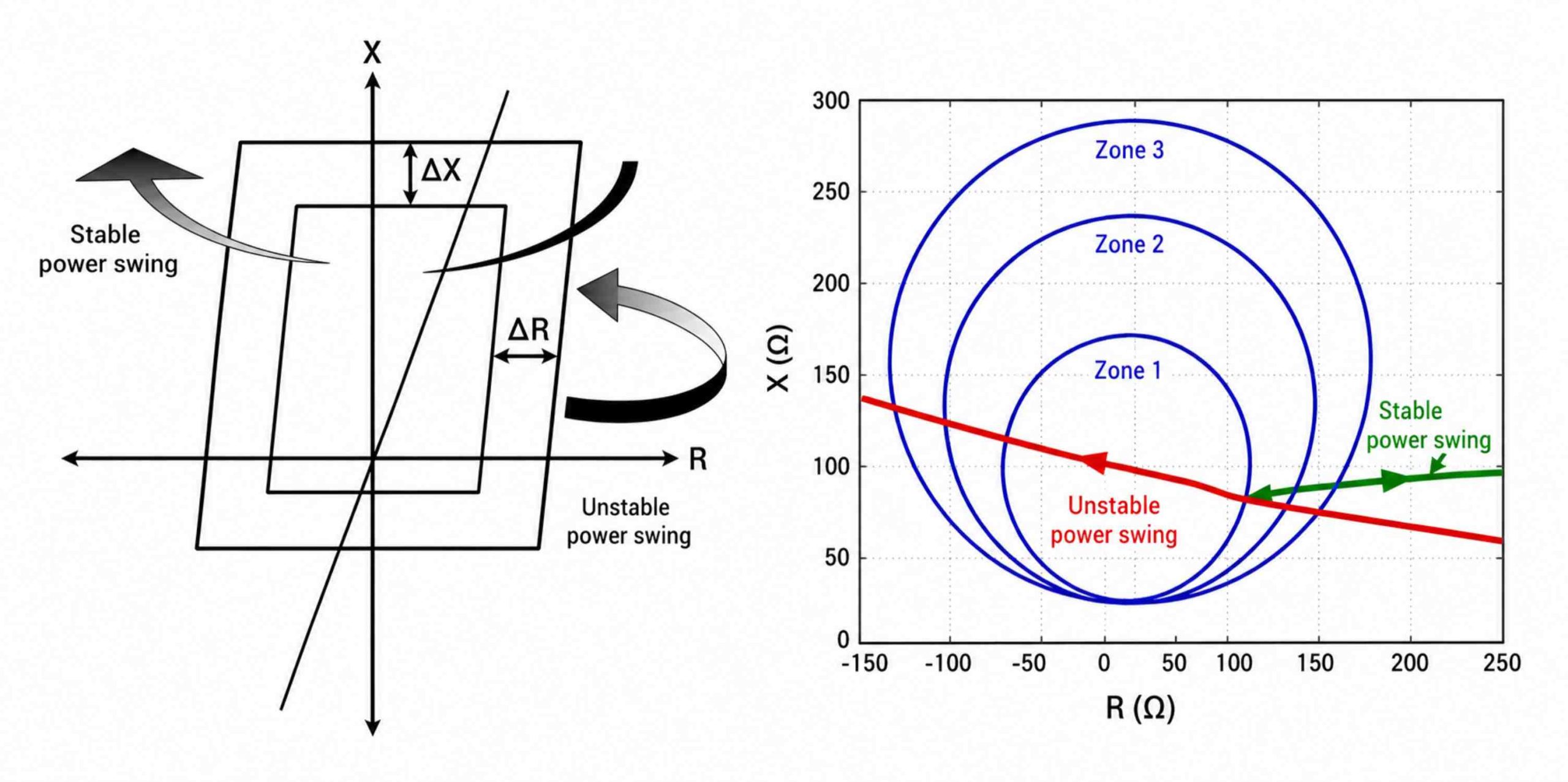

The change in impedance (∆R and ∆X) should occur smoothly over time and remain within a predefined threshold. Additionally, this change should be balanced across all three phases.
Why It Matters
Correctly identifying power swings helps prevent unnecessary interruptions in the power system. By avoiding false tripping, utilities can maintain stability, improve reliability, and ensure continuous power delivery.
