Simple Explanation of CT & PT (Instrument Transformers)

In electrical power systems, directly measuring very high currents and voltages is neither safe nor practical. That’s where instrument transformers come in—specifically Current Transformers (CT) and Potential Transformers (PT). They step down large values into smaller, measurable ones while ensuring safety.

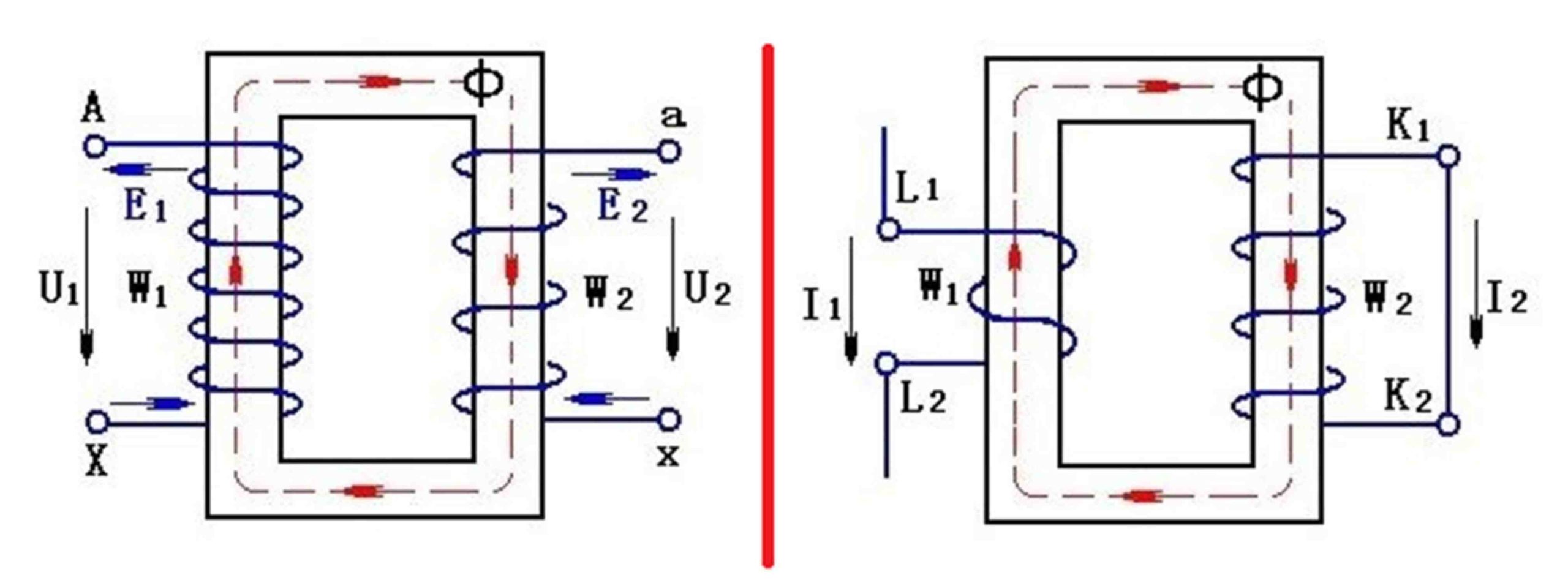

🔌 What is a Current Transformer (CT)?

A Current Transformer (CT) is used to measure high current in power systems.

• Connection: Always connected in series with the circuit
• Purpose: Converts high current to a lower, proportional current
• Typical Secondary Output: 1A or 5A
• Safety Rule:
  ⚠️ Never open the secondary circuit
  If the secondary is open while current flows, it can generate dangerously high voltage.

👉 CTs are widely used in ammeters, energy meters, and overcurrent protection relays.

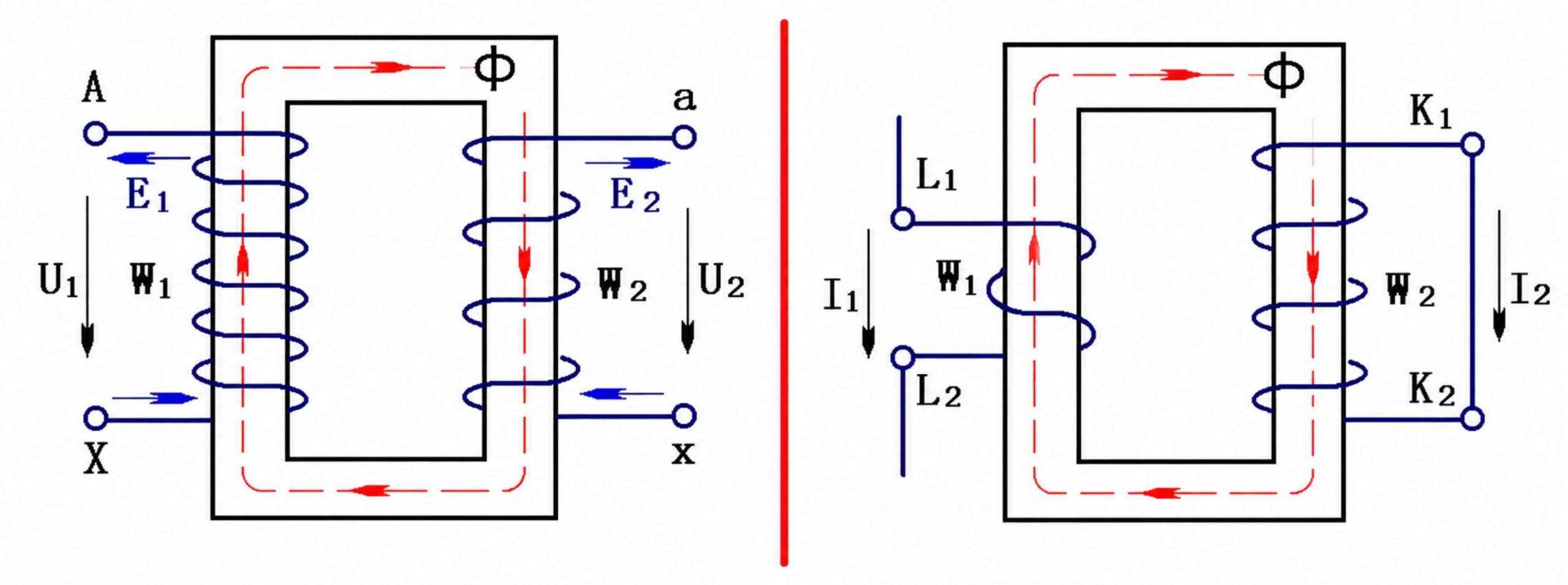

⚡ What is a Potential Transformer (PT)?

A Potential Transformer (PT) (also called a Voltage Transformer) is used to measure high voltage.

• Connection: Always connected in parallel with the circuit
• Purpose: Steps down high voltage to a lower, proportional voltage
• Typical Secondary Output: 100V
• Safety Rule:
  ⚠️ Never short the secondary circuit
  Shorting can cause excessive current and may burn the transformer.

👉 PTs are commonly used in voltmeters, energy meters, and voltage protection systems.

🔍 Main Differences Between CT & PT

⚙️ Why Are CT & PT Important?

Both CTs and PTs play a critical role in power systems:

• ✅ Ensure safe measurement of electrical quantities
• ✅ Enable accurate metering and billing
• ✅ Support protection systems (fault detection and isolation)
• ✅ Provide electrical isolation between high-power circuits and instruments

🧠 Final Thought

Think of CTs and PTs as “translators” for electricity—they convert dangerous, high-level signals into safe, readable values for instruments and protection devices.
