Substation Layouts: Typologies, Comparative Merits, and Applications

1. Introduction

A substation constitutes a critical node within an electrical power system, facilitating the transmission, transformation, and distribution of electrical energy. Its primary function is to modify voltage levels—stepping up voltage for efficient long-distance transmission from generating stations and stepping down voltage for safe local distribution to end-users. This process often involves multiple voltage transformations across a network of interconnected substations.

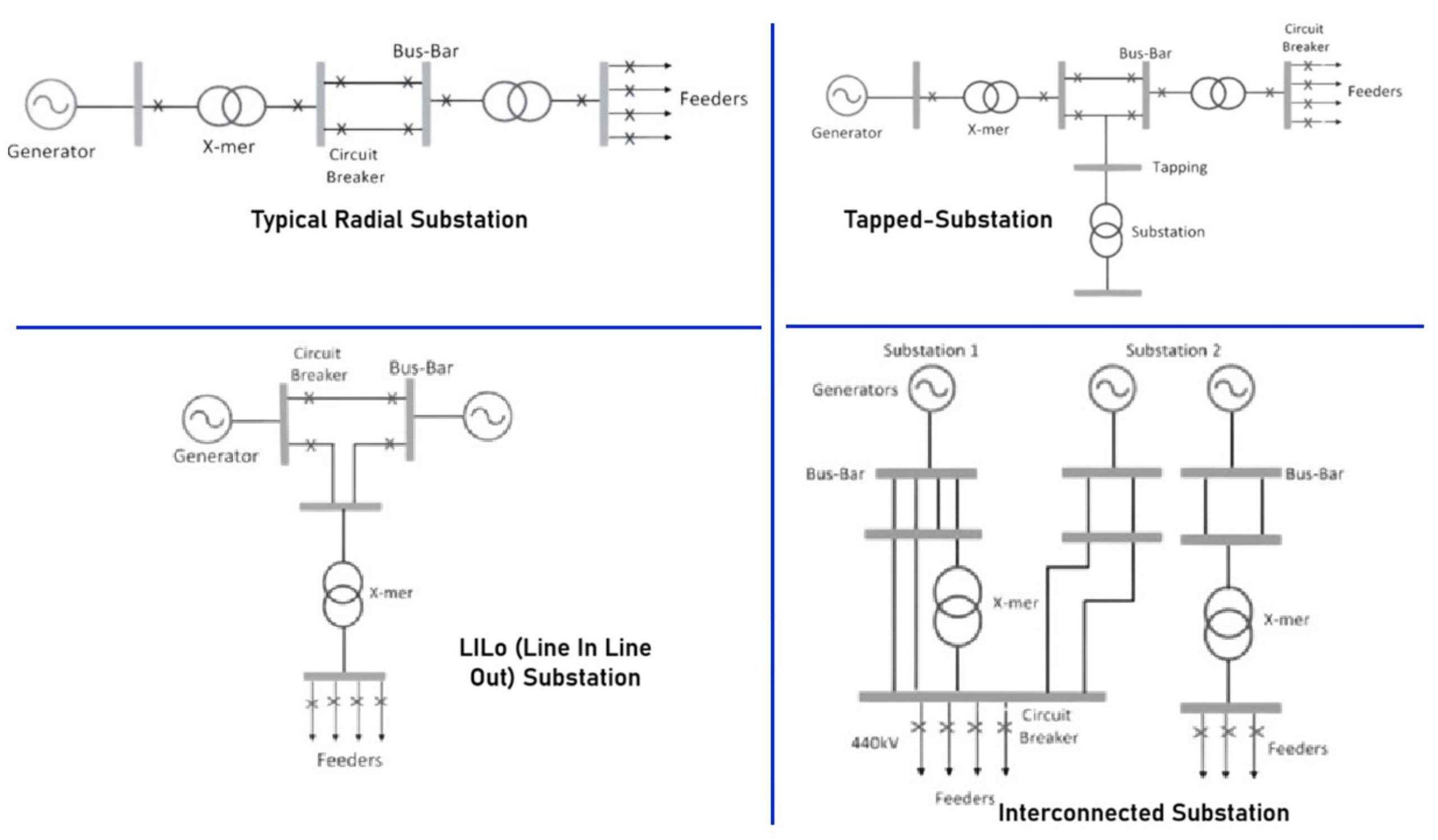

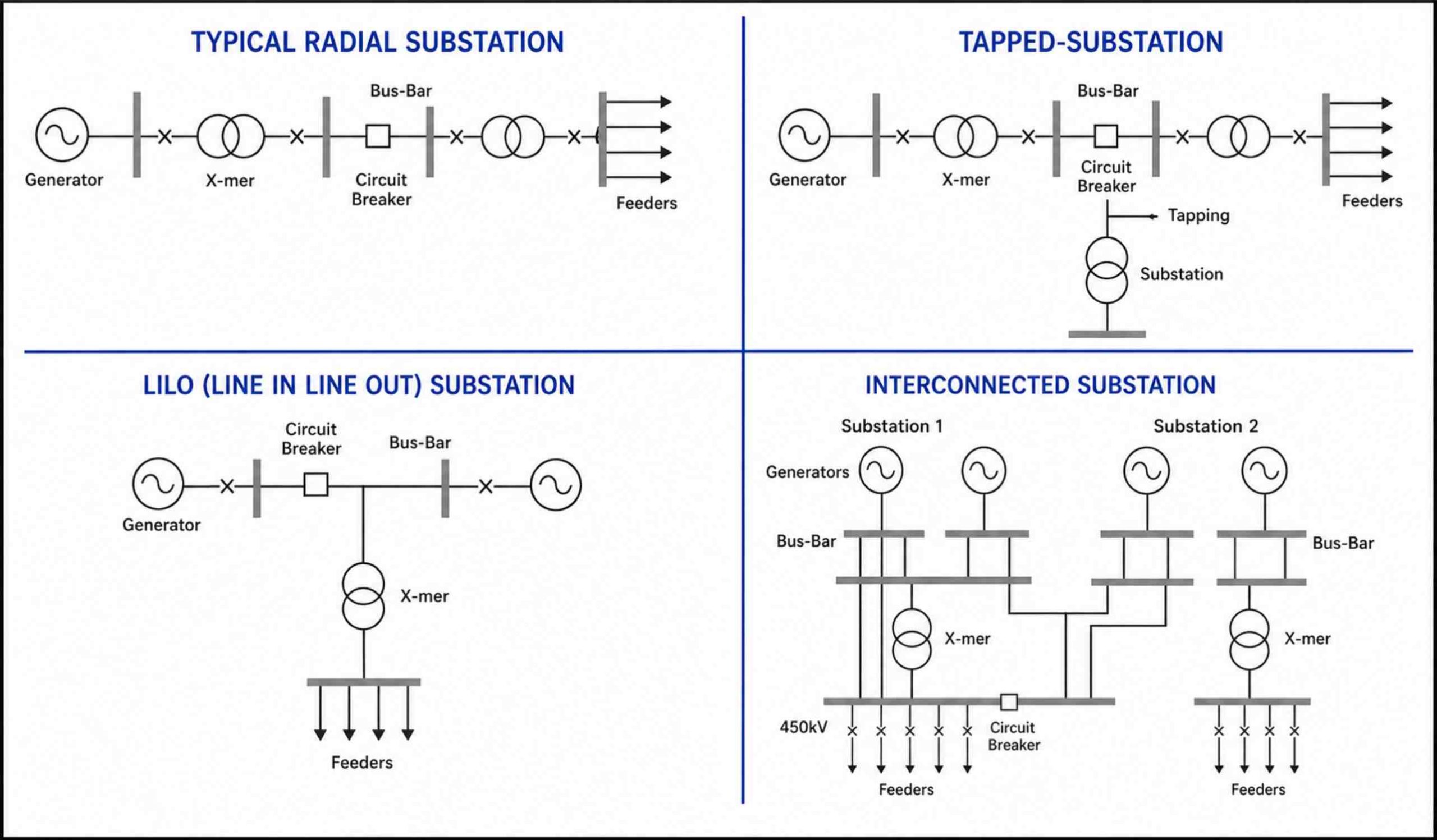

2. Typology of Substation Layout Configurations

Their electrical connectivity and busbar arrangement fundamentally classify substation layouts. The selection of a specific topology involves a trade-off between reliability, cost, operational flexibility, and complexity. The principal layouts are examined below.

2.1 Single Busbar Arrangement

• This is the simplest configuration, using a single common busbar to which all incoming and outgoing circuits are connected.
• Comparative Merits:
  • Advantages: Characterized by design simplicity, ease of operation, and low capital and maintenance costs.
  • Disadvantages: Exhibits low reliability and availability; a fault on the busbar or the need for maintenance necessitates a complete shutdown of the substation.
• Typical Applications: Predominantly employed in small distribution substations for rural electrification, small towns, or auxiliary power systems within industrial plants where cost is the primary constraint and continuous supply is less critical.

2.2 Double Busbar Arrangement

• Description: This configuration employs two separate and parallel busbars, typically designated as the primary and reserve busbars. Circuits can be connected to either busbar via bus couplers and selector switches.
• Comparative Merits:
  • Advantages: Offers enhanced operational flexibility, allowing maintenance on one busbar without interrupting the power supply. Provides inherent redundancy, improving overall system reliability.
  • Disadvantages: Incurs higher capital and operational costs due to duplicated infrastructure (busbars, isolators, circuit breakers). Operation and protection schemes are more complex.
• Typical Applications: Widely implemented in urban transmission and sub-transmission substations, extensive industrial facilities, and generating station switchyards where supply continuity and maintenance flexibility are paramount.

2.3 Ring Bus Arrangement

• Description: In this topology, busbars are arranged in a closed ring, with each section of the ring connected between two circuit breakers. Each circuit is fed from a node between two breakers.
• Comparative Merits:
  • Advantages: Provides high reliability; a fault on one section can be isolated by opening the two adjacent breakers, leaving the rest of the ring energized. Permits maintenance of any single breaker without a load interruption.
  • Disadvantages: Fault currents can be complex to manage. Expanding the system can be challenging and may require reconfiguration to a different layout.
• Typical Applications: Suitable for important distribution and sub-transmission substations, such as those supplying hospitals, data centers, and suburban networks requiring high reliability with moderate scalability.

2.4 Mesh (or Grid) Arrangement

• Description: An extension of the ring bus concept, this highly interconnected configuration forms a network where multiple paths exist between any two points. It is often realized using breaker-and-a-half or double-bus double-breaker schemes.
• Comparative Merits:
  • Advantages: Delivers exceptional reliability and security; the loss of any single component (breaker or bus section) typically does not cause an outage. Offers high operational flexibility for load switching.
  • Disadvantages: It entails the highest capital cost due to the extensive use of circuit breakers and complex buswork. Protection and control systems are sophisticated and require advanced management.
• Typical Applications: Reserved for extra-high-voltage (EHV) transmission substations, major grid interconnection points, and metropolitan core networks where system security and maximum availability are non-negotiable.

2.5 Sectionalized Busbar Arrangement

• Description: This is a variation of the single or double busbar layout where the main busbar is divided into electrically isolated sections using bus section circuit breakers or isolators.
• Comparative Merits:
  • Advantages: Improves upon the basic single busbar by limiting the impact of a fault or maintenance to one section, thereby enhancing overall availability. More cost-effective than a full double busbar for achieving moderate redundancy.
  • Disadvantages: More expensive and operationally complex than a non-sectionalized single busbar. Fault isolation logic must be carefully designed.
• Typical Applications: Commonly used in medium-sized cities, large industrial complexes, and mixed-use developments that require a balance between improved reliability, manageable cost, and operational simplicity.

3. Systematic Planning and Design of Substations

The deployment of a substation is a multidisciplinary engineering process. Key sequential steps include:

1. Load Forecasting & Requirement Analysis: Determining present and future electrical load demands.
2. Site Selection: Evaluating land availability, environmental impact, proximity to load centers and transmission lines, and accessibility.
3. Electrical Design: Specifying voltage levels, short-circuit capacity, and selecting appropriate layouts (as detailed above).
4. Equipment Specification: Choosing transformers, circuit breakers, switchgear, protection relays, and monitoring systems based on technical and economic criteria.
5. Physical Layout & Civil Works: Designing the spatial arrangement of equipment, structures, control buildings, and access roads for safety, efficiency, and maintainability.
6. Protection & Control Systems Design: Engineering schemes to detect faults, isolate faulty components, and ensure stable, automated operation.
7. Regulatory Compliance & Safety: Adhering to national electrical codes, safety standards (e.g., clearances, grounding), and environmental regulations.
8. Documentation: Preparing detailed engineering drawings, specifications, and project manuals for construction and commissioning.

4. Conclusion

The selection of an optimal substation layout is a fundamental decision in power system engineering, directly influencing network reliability, cost-effectiveness, and operational efficacy. Each topological configuration presents a distinct set of trade-offs. The single busbar offers economy at the expense of reliability, while the mesh arrangement provides maximum security at a premium cost. Intermediate configurations, such as the double busbar and ring bus, offer balanced solutions for a wide range of applications. Ultimately, the choice must be guided by a rigorous analysis of technical requirements, economic constraints, and the criticality of the load being served.
