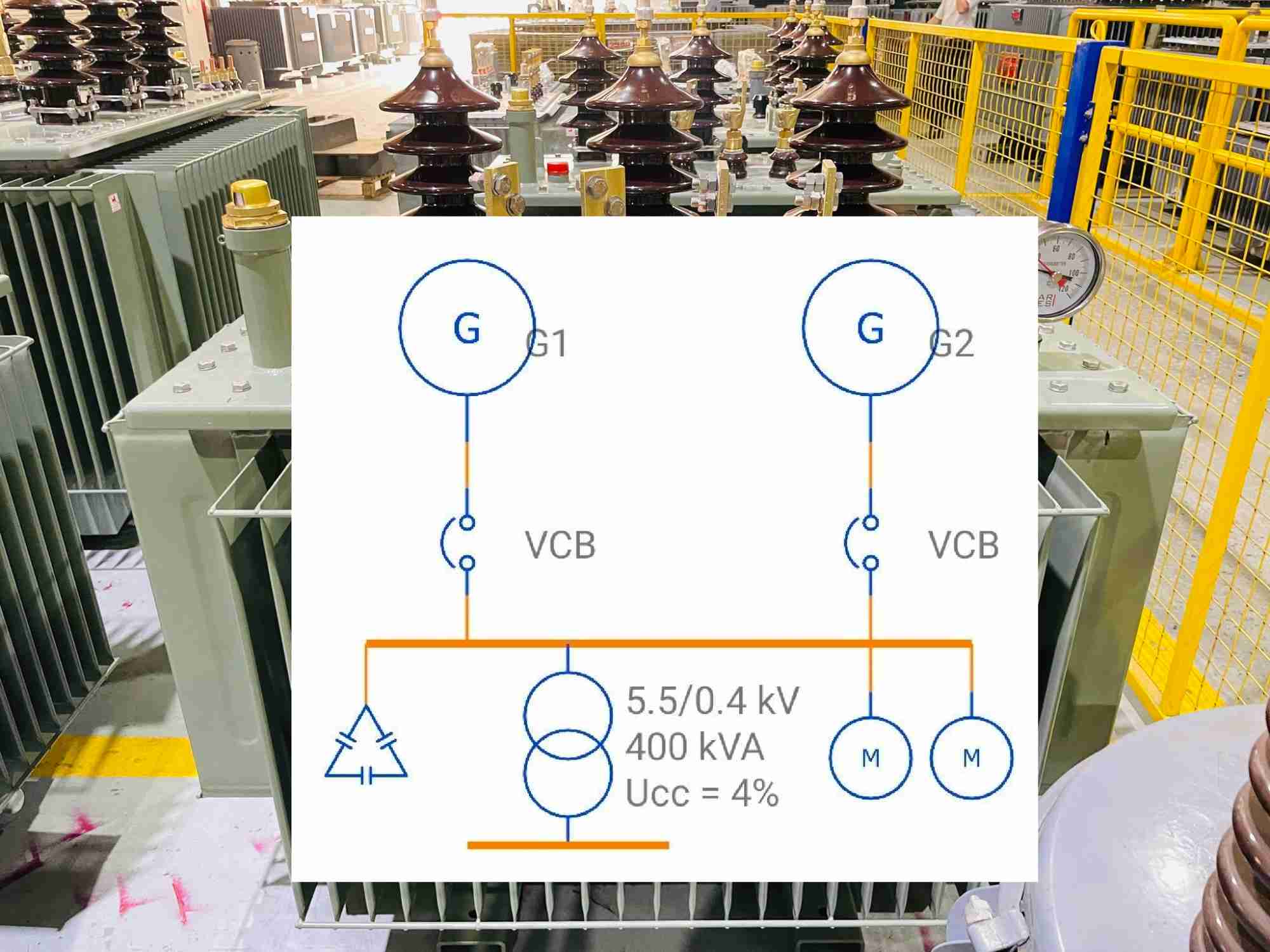

Requirements for the Parallel Operation of Alternators
When operating alternators in parallel, certain technical conditions must be met to ensure stable, reliable performance. Parallel operation improves reliability, flexibility, and load sharing in power systems, but it can only be achieved when the following requirements are met:
1. Same Voltage Rating
All alternators (or synchronous generators) connected in parallel must have the same output voltage rating. This ensures that no circulating currents flow between machines due to voltage differences.
2. Same Frequency
The alternators must operate at the same frequency. Since frequency ( f ) is given by:
f = (P * N) / 120
where P is the number of poles and N is the speed in RPM, the machines must run at speeds that produce identical frequencies. Any frequency mismatch can cause instability and improper load sharing.
3. Same Type and Waveform
The alternators should be of the same type to produce voltages with identical waveforms. This ensures synchronization without distortion or harmonics. However, their power (kVA) ratings may differ, as generators of different capacities can operate together provided other conditions are satisfied.
4. Similar Speed–Load Characteristics of Prime Movers
The prime movers driving the alternators should have similar speed–load (governor) characteristics. These characteristics should be droop-based so that each generator shares the load proportionally according to its rated capacity. Proper load sharing prevents overloading of any single machine.
5. Presence of Armature Reactance
Alternators must have sufficient armature reactance. Without reactance, a machine cannot develop generating power under parallel operation. Reactance enables stable power sharing and prevents excessive circulating currents between generators. Therefore, alternators without adequate reactance cannot operate successfully in parallel.
By ensuring these requirements are met, alternators can operate smoothly in parallel, delivering reliable, balanced power to the electrical system.
